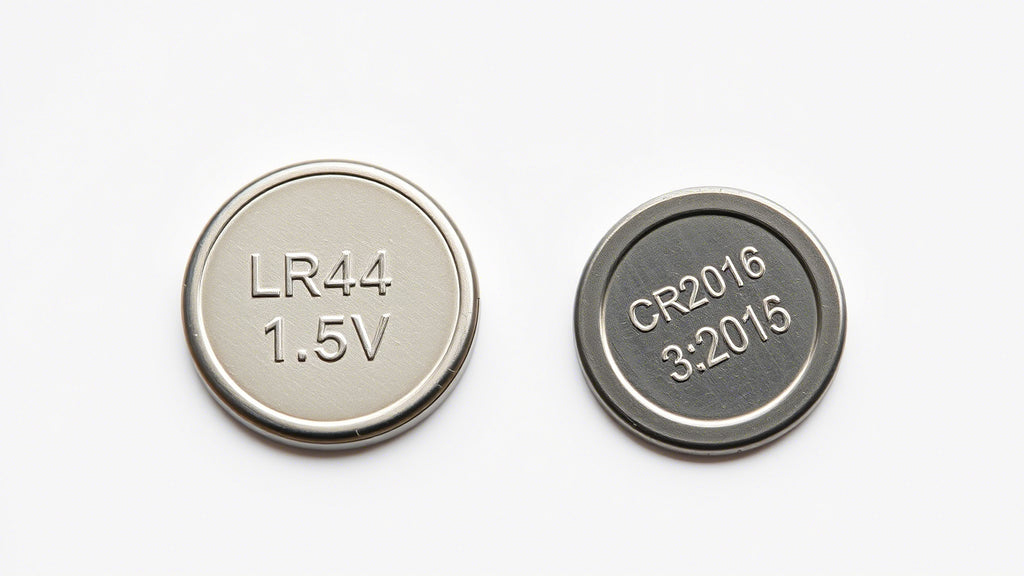

LR44 vs. CR2016: Key Differences, Equivalents & Which Battery to Choose

Confused about which tiny battery powers your gadgets? Let's demystify LR44 and CR2016 batteries! These small, disc-shaped button cell batteries are essential for many electronic devices. But with various chemistries like alkaline, silver oxide, and lithium, choosing the right one is crucial for optimal device performance and longevity. This guide will clarify the differences between LR44 and CR2016 batteries, their equivalents, and how to select the best option for your needs.

LR44 vs. CR2016 Batteries: Decoding the Differences for Optimal Device Power

Understanding Button Cell Batteries

Button cells, also known as button batteries because of their small, button-like form, are thinner and have a larger diameter than cylindrical batteries like AA batteries. They come in various shapes, including square, cylindrical, and custom shapes. The two main types are rechargeable and non-rechargeable.

• Rechargeable: Include 3V lithium-ion (ML or VL series) and 3.6V lithium-ion batteries (LIR series).

• Non-rechargeable: Include 1.5V alkaline zinc-manganese (LR and SR series) and 3V lithium-manganese batteries (CR series).

LR44 Battery: The Alkaline Workhorse

The LR44 battery is a small, alkaline button cell commonly used in low-drain devices due to its cost-effectiveness and availability. It typically delivers 1.5V.

• Nomenclature: The 'L' indicates alkaline chemistry, and 'R' denotes its round shape. The numbers 44 relate to the battery size.

• Chemistry: Primarily composed of zinc and manganese dioxide.

• Equivalents: Often interchangeable with AG13, A76, 357, 76A, LR1154.

• Applications: Widely found in toys, calculators, remote controls, LED flashlights, watches, and medical devices.

• Specifications: Approximately 11.6mm in diameter and 5.4mm in height, with a capacity of around 115 mAh.

• Brands: Prominent manufacturers include Toshiba, Maxell, Energizer, and Tianqiu.

• Operating Temperature: Ideally operates at 20°C but can function between 0°C and 60°C.

CR2016 Battery: The Lithium Coin Cell

The CR2016 battery is a lithium coin cell, known for its compact size and reliable 3V power output.

• Chemistry: Utilizes lithium manganese dioxide (LiMnO2).

• Equivalents: While not direct replacements, CR2025 and CR2032 can sometimes be used with certain caveats.

• Applications: Frequently used in watches, key fobs, fitness trackers, calculators, remote controls, medical devices, and LED lights.

• Specifications: 20mm in diameter and 1.6mm tall, with a typical capacity of 70-90 mAh.

• Shelf Life: Generally lasts for 2-3 years.

LR44 vs. CR2016: Key Differences

Understanding the core differences is essential for choosing the right battery:

Can I Use an LR44 Instead of a CR2016 (or Vice Versa)?

No, generally you cannot directly replace an LR44 with a CR2016, or vice versa, due to significant differences in voltage and size.

• Voltage Differences: The LR44 operates at 1.5V, while the CR2016 operates at 3V. Using a battery with the wrong voltage can cause malfunction or damage to your device.

• Physical Size Matters: The LR44 (11.6mm diameter, 5.4mm height) is much smaller than the CR2016 (20mm diameter, 1.6mm height). This size difference will prevent proper contact and function.

Attempting to force a battery of the wrong size or voltage can be dangerous and may ruin your device.

CR2016 Equivalents and Considerations

While a direct replacement isn't always possible, here's what to consider for CR2016 alternatives:

• CR2025 and CR2032: These are thicker (2.5mm and 3.2mm, respectively) but share the same 20mm diameter and 3V voltage.

• Fit Issues: Due to the increased thickness, they might not fit in devices designed for CR2016 batteries.

• Reduced Lifespan: If a CR2016 is replaced with a thinner battery, it will have a significantly lower capacity, resulting in a shorter battery life.

• The "Stacking" Hack: Some users suggest stacking two CR2016 batteries to replace a CR2032. However, this is generally not recommended as it can lead to poor contact and potential device damage.

LR44 Battery Equivalents and Considerations

When looking for LR44 equivalents, consider these options:

• AG13, A76, and LR1154: These are direct replacements for LR44 batteries, with the same size and voltage.

• SR44, 303, 357: These are silver oxide batteries with the same dimensions but offer a more stable voltage and longer life, making them suitable for low-drain applications like watches.

• Voltage Matching: Ensure the replacement battery has a similar voltage (1.5V) to avoid damaging the device.

• Capacity Needs: Choose a battery with a suitable capacity (mAh) for the device's power requirements.

Getting the Most Out of Your Batteries

To ensure your batteries perform optimally and last longer, consider these tips:

• Proper Storage: Store batteries in a cool, dry place to prevent self-discharge and corrosion. Check the manufacturing and expiration dates before use.

• Handling: Avoid touching the battery surfaces with your bare hands. Oils and contaminants can affect conductivity and lead to corrosion.

• Disposal: Recycle batteries properly through designated collection points to minimize environmental impact.

• Troubleshooting:

• Device not working: Double-check the battery polarity (+/-) and ensure correct placement. Clean the battery contacts with a dry cloth to remove any corrosion.

• Short battery life: If compatible, consider using a higher-capacity equivalent, but always prioritize the correct voltage and size.

What the Experts Say

"Choosing the correct battery for your device is crucial for ensuring both performance and safety. Always refer to the device manufacturer's recommendations and prioritize reputable brands known for their quality and reliability." - Microbattery.com Battery Expert

Research indicates that proper storage and handling can significantly extend battery life and prevent potential hazards.

FAQ Your Questions Answered

• Q: Are LR44 and AG13 batteries the same?

• A: Yes, LR44 and AG13 are equivalent and often used interchangeably. They share similar dimensions and electrical properties.

• Q: How long do LR44 batteries last in a watch?

• A: It varies depending on the watch type and usage. Silver oxide (SR44) batteries generally last longer in watches than alkaline LR44 batteries.

• Q: Can I recharge an LR44 battery?

• A: No, LR44 batteries are not rechargeable. Attempting to recharge them can be dangerous.

• Q: What voltage is a CR2016 battery?

• A: A CR2016 battery has a nominal voltage of 3V.

• Q: Where can I buy LR44 and CR2016 batteries?

• A: You can purchase them from online retailers (Amazon, eBay, TradeNRG), drugstores (CVS, Walgreens), supermarkets, and electronics stores.

General Compatibility and Usage

• Q: Can I use a CR2032 instead of a CR2016?

• A: While both have the same voltage (3V), it’s generally not recommended due to size differences. The CR2032 is thicker and may not fit properly, potentially causing damage. Always use the designated battery type for your device.

• Q: What happens if I use a CR2016 in a device that requires a CR2032?

• A: It might work temporarily, but the smaller capacity of the CR2016 will result in lower overall performance. Additionally, the thinner size can cause connection problems.

• Q: Are CR1620 and CR2016 the same?

• A: No, they are not the same. They have different dimensions.

LR44 Specific Questions

• Q: What does LR stand for in batteries?

• A: In the IEC 60086-3 standard, "L" indicates alkaline chemistry, and "R" denotes a round shape.

• Q: Are LR44 batteries the same as AG13 batteries?

• A: Yes, LR44 batteries are the same as AG13 batteries. These equivalents share similar dimensions and electrical properties with the LR44, making them interchangeable in many devices.

• Q: How long do LR44 batteries last?

• A: Lifespan varies based on the device, usage, and current draw. If used and charged correctly, they can last for years.

• Q: Is the SR44 battery compatible with the LR44 battery?

• A: Yes, there is no physical difference between the two batteries. Their major difference is their chemistry. SR44 is silver oxide, and LR44 is alkaline. As a result, these batteries can be interchanged.

CR2016 Specific Questions

• Q: What is a CR2016 battery used for?

• A: CR2016 batteries are ideal for watches, calculators, photography, memory backup, and other electronic devices.

• Q: How long do CR2016 batteries last?

• A: The lifespan of a CR2016 battery typically ranges from 1 to 3 years, depending on the device and usage.

• Q: What is the voltage of a CR2016 battery?

• A: The voltage that the CR2016 batteries provide is three volts.

Equivalents and Replacements

• Q: What is a replacement for LR44?

• A: Direct replacements for LR44 include Duracell 76A, Energizer A76, and AG13 batteries. The silver oxide battery known as SR44 is also a direct replacement for the LR44.

• Q: What battery can I use instead of a CR2016?

• A: Generally, you can substitute CR2025 for CR2016 if the battery compartment can accommodate the thicker CR2025.

Safety and Handling

• Q: Are LR44 batteries explosive?

• A: According to the Expotech USA LR44 Product Safety Data Sheet, LR44 batteries can explode if they are overheated, deformed, dismantled, short-circuited, force discharged, or charged. They can also leak or vent if these things happen.

• Q: What happens if you put two batteries together?

• A: The document does not contain information about what happens if you put two batteries together.

Conclusion

Key Takeaways:

• LR44 and CR2016 batteries differ significantly in voltage, chemistry, and size, making them suitable for different applications.

• Choosing the right battery ensures your devices function correctly and safely.

• Always check your device's specifications and consult the manufacturer's recommendations before replacing a battery.

The importance of selecting the correct battery cannot be overstated. It saves money, prevents device damage, and ensures safety.
